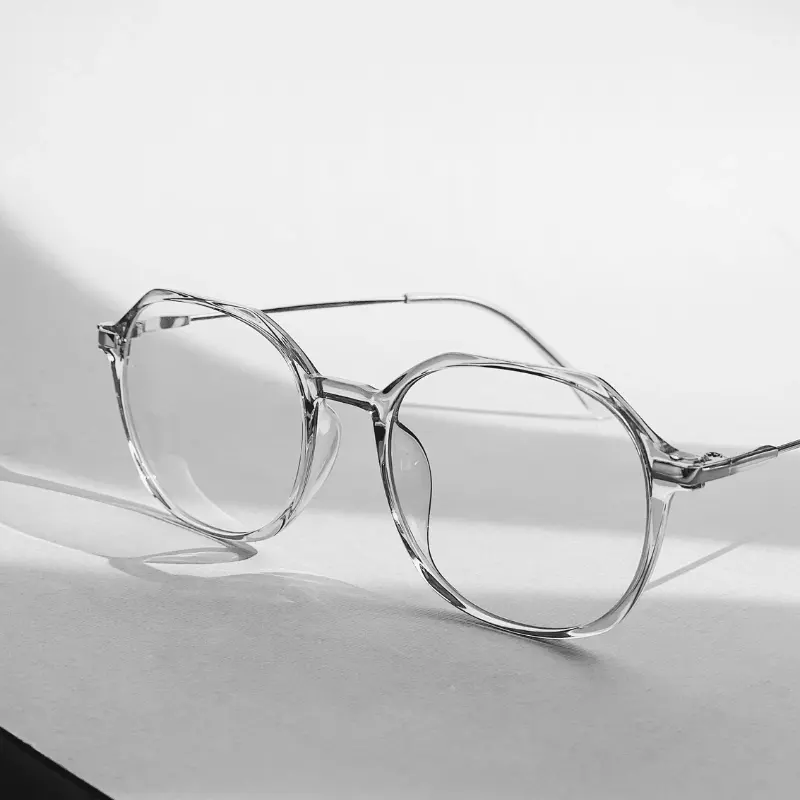

Acetate Optical Frame Rim Depth: What Opticians Need From Your Frame Supplier

Rim depth never shows up in a product photo, and it rarely comes up on a spec sheet unless someone asks. But it’s one of the few dimensions on an optical frame that decides, on its own, whether the lens lab glazing your frame months later has an easy job or a frustrating one. Get it right and nobody ever notices. Get it wrong, and it surfaces as a support ticket: a lens that rocks, a gap that won’t clean up, or a lens that pops out during shipping to the end customer.

This is a spec worth understanding before you approve a new acetate optical style — not after your customer’s local optician calls to say the frame won’t glaze cleanly.

What “Rim Depth” Actually Means

“Rim depth” gets used loosely, so it’s worth separating three things that are related but not identical:

• Groove depth — how deep the channel cut into the inside of the rim is, measured from the lens edge surface down to the bottom of the groove.
• Bevel angle — the angle of that groove, which has to correspond to the angle the local lens lab cuts onto the edge of the prescription lens.
• Rim thickness margin — the overall visual and structural allowance built into the rim around the groove, which we’ve covered separately when it comes to [designing frames for different prescription strengths].

This article is about the first two — groove depth and bevel angle — because that’s the part opticians actually measure and complain about, and it’s the part a frame supplier controls directly.

The Industry Standard Your Frames Should Be Built To

There’s an actual published standard here, which is worth knowing even if you never quote it to a customer. ISO 12870 (adopted in the UK as BS EN ISO 12870) specifies that the bevel angle of an edged lens for a grooved spectacle frame should be 120°, with a tolerance of +3°/−2°. Full-rim acetate frames are typically built with a matching groove around 1.5mm deep at that same 120° angle — that pairing is what lets a lens lab’s bevel “click” into the frame’s groove with a clean, repeatable fit, no adhesive or screws required.

That number — 120°, roughly 1.5mm — is the baseline any acetate optical frame supplier should be able to quote you without hesitation. If a supplier can’t tell you their groove angle and depth, they likely haven’t measured it either, which means it isn’t controlled across a production run.

What Happens When the Groove Is Off

None of this matters until it doesn’t fit. Here’s what actually goes wrong, and why.

Angle Mismatch: Gaps That Won’t Clean Up

If the groove angle is cut more acute (sharper) than the lens bevel, a visible gap opens up between the lens edge and the frame — and that gap becomes a place where grime collects and never fully cleans out. This is a cosmetic issue at first, but it’s also the kind of small detail that makes a private-label frame look cheap in a customer’s hands, even when the frame material and finish are genuinely good.

Groove Too Shallow: Lenses That Rock and Pop Out

A groove that’s too shallow doesn’t grip the lens bevel with enough surface contact. The lens can rock slightly in the frame, and over time — or with a bump, a temperature change, or repeated cleaning — it works its way loose. This is one of the most common reasons a finished pair of glasses comes back to an optician as a “lens popped out” complaint, and it’s a groove problem, not a lens problem.

Base Curve Mismatch: The Most Common Cause of Lens Pop-Outs

This is the failure mode that catches the most buyers off guard, because it isn’t really about groove depth at all — it’s about the curve of the groove around the frame. A prescription lens is ground to a specific base curve to match the frame it’s going into. If a frame’s groove curve doesn’t match the lens curve — for example, a flatter lens forced into a more curved frame groove — the groove places constant pressure on the lens edge, trying to bend it into a shape it wasn’t ground for. That tension doesn’t go away; it just waits for a small trigger — a knock, a temperature swing, a cleaning — to release itself as a popped lens. This is exactly why base curve consistency across a production run matters as much as the groove depth number itself, and it’s part of why we keep our acetate optical molds in a controlled, moderate base curve range rather than optimizing purely for how a style photographs.

Groove Edge Too Thin: A Problem With Higher Powers

For plus-power (farsighted or reading) prescriptions in particular, the lens can become quite thin toward its edge. If the rim doesn’t reserve enough edge thickness around the groove — the general guidance in the optical lab industry is to keep at least 1.5–2.0mm of stable material at the groove edge — the lens edge becomes fragile exactly where it needs to be most secure. This is less of an issue for standard minus-power (nearsighted) prescriptions, where the edge tends to be thicker, which is one more reason “one groove spec fits all prescriptions” isn’t quite true.

Semi-Rimless (Nylor) Grooves Have Their Own Tolerance

If your acetate optical collection includes semi-rimless styles, the groove logic changes slightly. Instead of a full 120° bevel groove, a semi-rimless frame needs a much narrower channel — typically around 0.5mm wide and 0.4–0.5mm deep — cut around the lens edge to seat the nylon “supra” cord that holds the lower half of the lens in place. This groove has to follow the lens contour precisely; if it wanders even slightly off the intended line, the cord sits unevenly and the lens can shift or drop out of the lower channel. Because this groove is cut into the lens (not the frame) by the local lab, what your factory controls is the shape and consistency of the upper rim and end-pieces that the cord anchors to — and that anchor point needs to hold its shape reliably across a full production run.

Why Acetate’s Groove Tolerance Isn’t the Same as Metal or TR90

This is worth calling out because it’s specific to the material you’re sourcing, not eyewear in general. Acetate is thermoplastic — the standard way a lens lab seats a lens into a full-rim acetate frame is to gently heat the frame front with a blow-heater until it becomes pliable, then stretch it slightly over the lens edge before it cools and grips the bevel. Metal frames don’t work this way at all; their grooves are rigid from the start.

That heat-forming step means acetate’s groove tolerance interacts with the sheet’s thickness and density in a way metal and TR90 frames don’t. If the acetate sheet used isn’t consistent, the groove behaves inconsistently under heat — too soft, and the frame overstretches and loses shape; not pliable enough, and the lab can’t seat the lens without excess force. This is one of the quieter reasons sheet acetate quality and groove-cutting consistency need to be evaluated together, not as separate line items on a spec sheet.

What to Ask Your Frame Supplier Before You Approve a Style

Before signing off on a new acetate optical design, it’s worth getting straight answers to a short list of questions:

• What groove depth and bevel angle do you cut to, and can you confirm it against ISO 12870?
• How consistent is that groove across a full production run, not just the sample?
• What base curve range do your optical molds sit in, and has it been checked against a realistic prescription range for our target market?
• For semi-rimless styles, how is the upper rim engineered to hold the supra cord’s anchor point consistently?
• What edge thickness margin is reserved around the groove for higher-power prescriptions?

None of these questions will slow down a supplier who actually controls their tooling — and any hesitation on them is a useful signal before you commit to a production run.

Frequently Asked Questions

What is the standard bevel angle for eyeglass frames?

ISO 12870 specifies a bevel angle of 120°, with a tolerance of +3°/−2°, for the edged lens fitted into a grooved spectacle frame. Full-rim acetate frames are typically built with a matching groove around 1.5mm deep at that same angle.

Why does my lens keep popping out of the frame?

The most common causes are a groove that’s too shallow to grip the lens bevel securely, or a mismatch between the frame’s base curve and the curve the lens was ground to. A base curve mismatch puts constant tension on the lens edge, which eventually releases as a popped lens.

What’s the difference between groove depth and rim thickness?

Groove depth is the depth of the channel cut into the inside of the rim that holds the lens bevel. Rim thickness margin is the broader visual and structural allowance built into the rim around that groove, which matters most for accommodating thicker lens edges at higher prescriptions.

Can any local lens lab glaze any optical frame?

In most cases, yes, as long as the frame’s groove follows standard dimensions. But frames with inconsistent groove depth, an unusual bevel angle, or an extreme base curve can make glazing harder and increase the chance of a poor fit, regardless of the lab’s skill.

Why do acetate frames need to be heated before glazing?

Acetate is thermoplastic. Gently heating the frame front with a blow-heater makes it pliable enough to stretch slightly over the lens edge before it cools and grips the bevel — a step that isn’t needed with rigid metal frames.

Rim depth is one of those specs that’s easy to skip past when you’re evaluating a frame on style and color alone. But it’s also one of the few things that determines whether your customer’s local optician has a smooth glazing experience or a support ticket on their hands — which is exactly the kind of detail worth locking down before a style goes into your acetate optical frames collection, not after the first batch ships.
